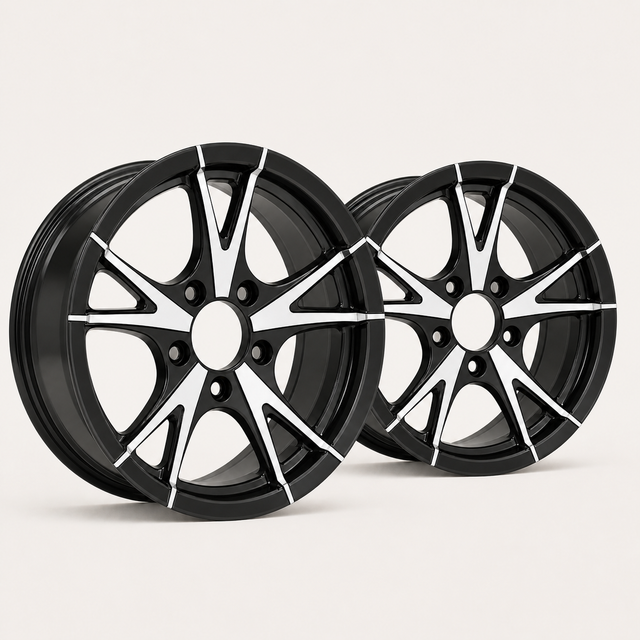

Set of 2 — 15x5 Trailer Wheel 5 Lug (5x4.5) Aluminum Black Machined — Rhino CW515

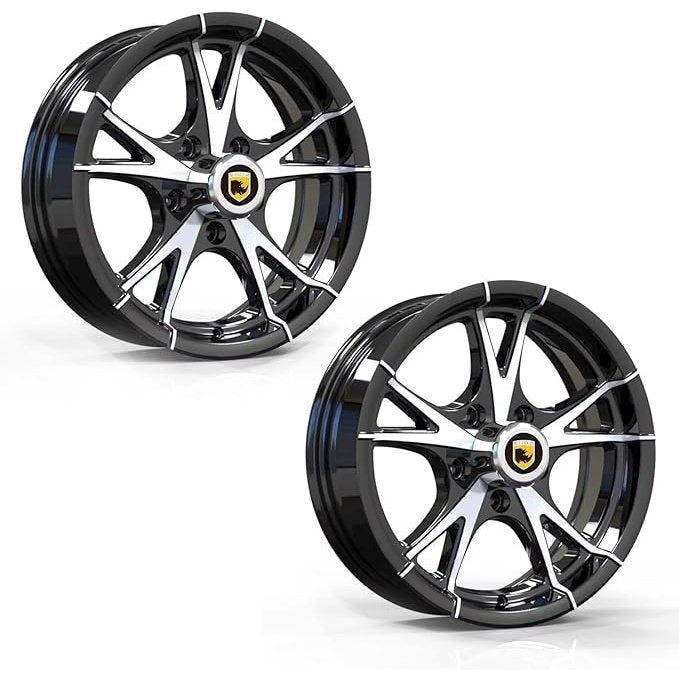

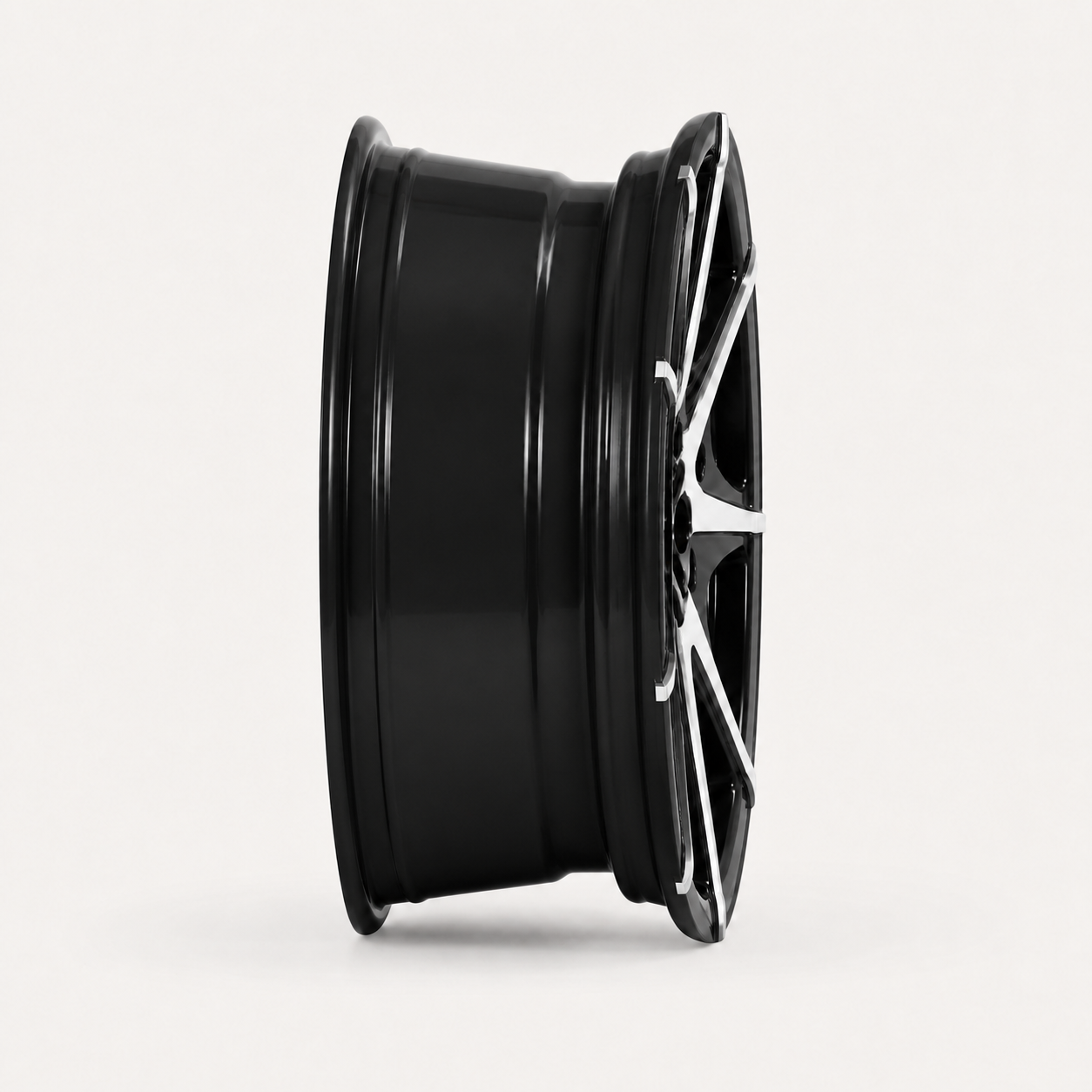

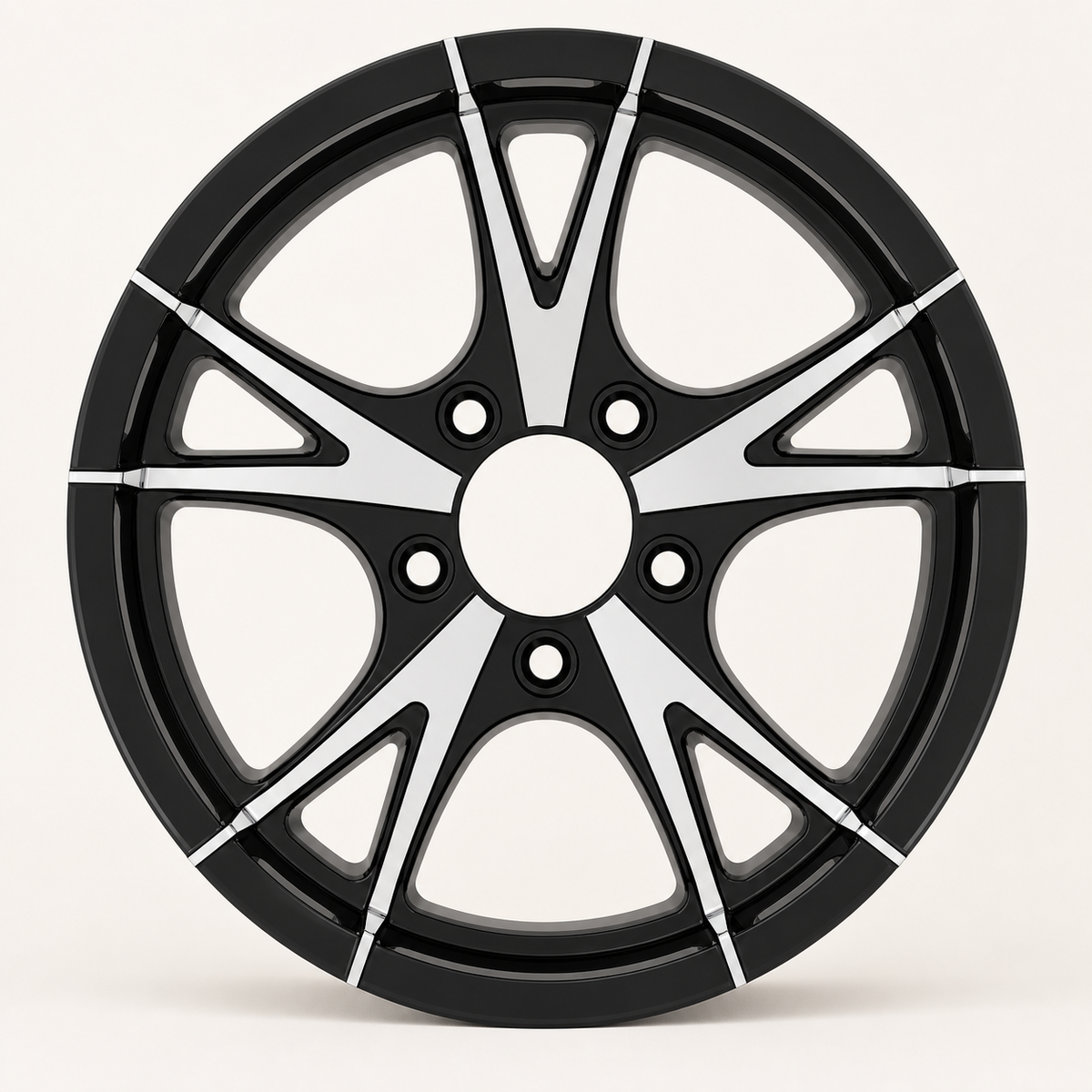

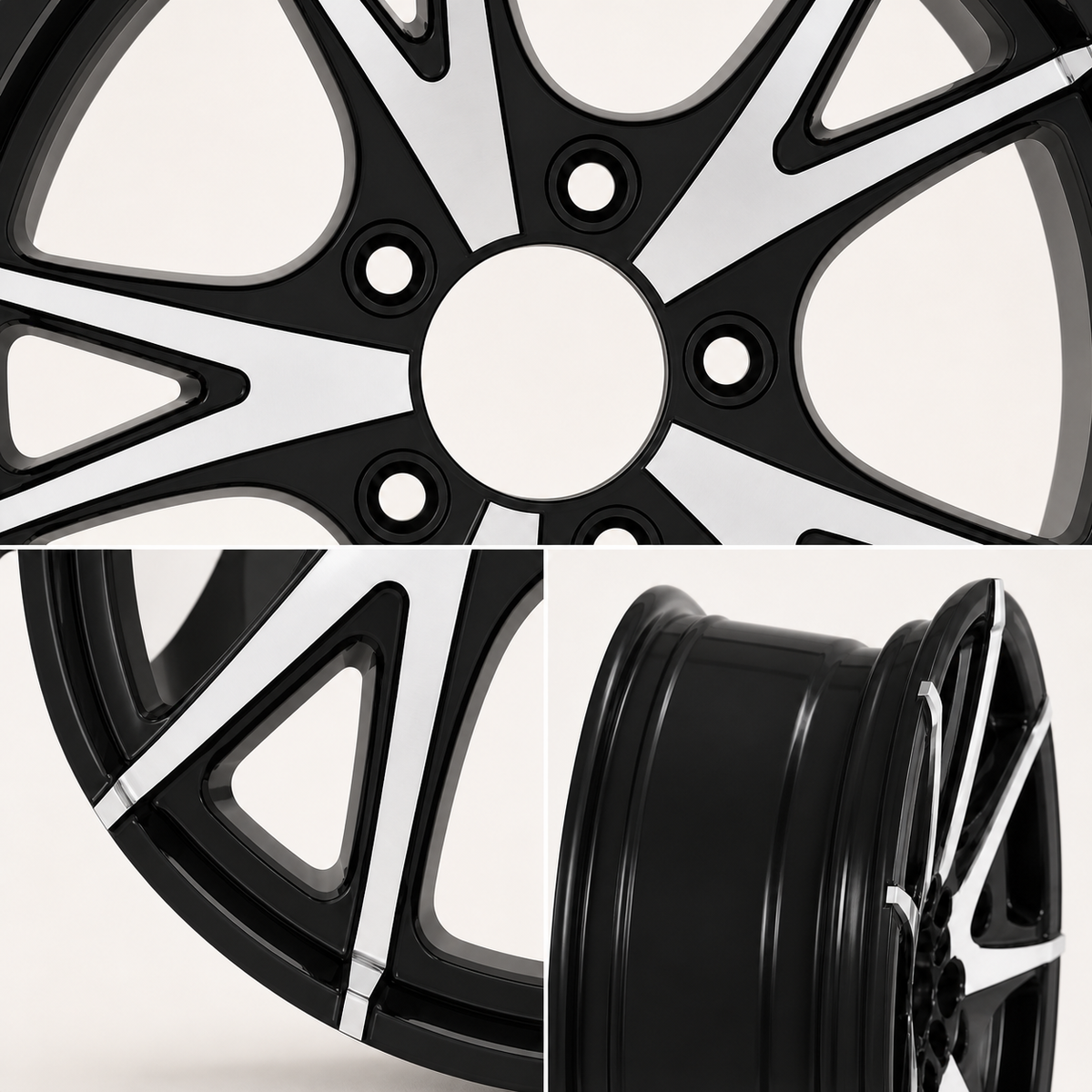

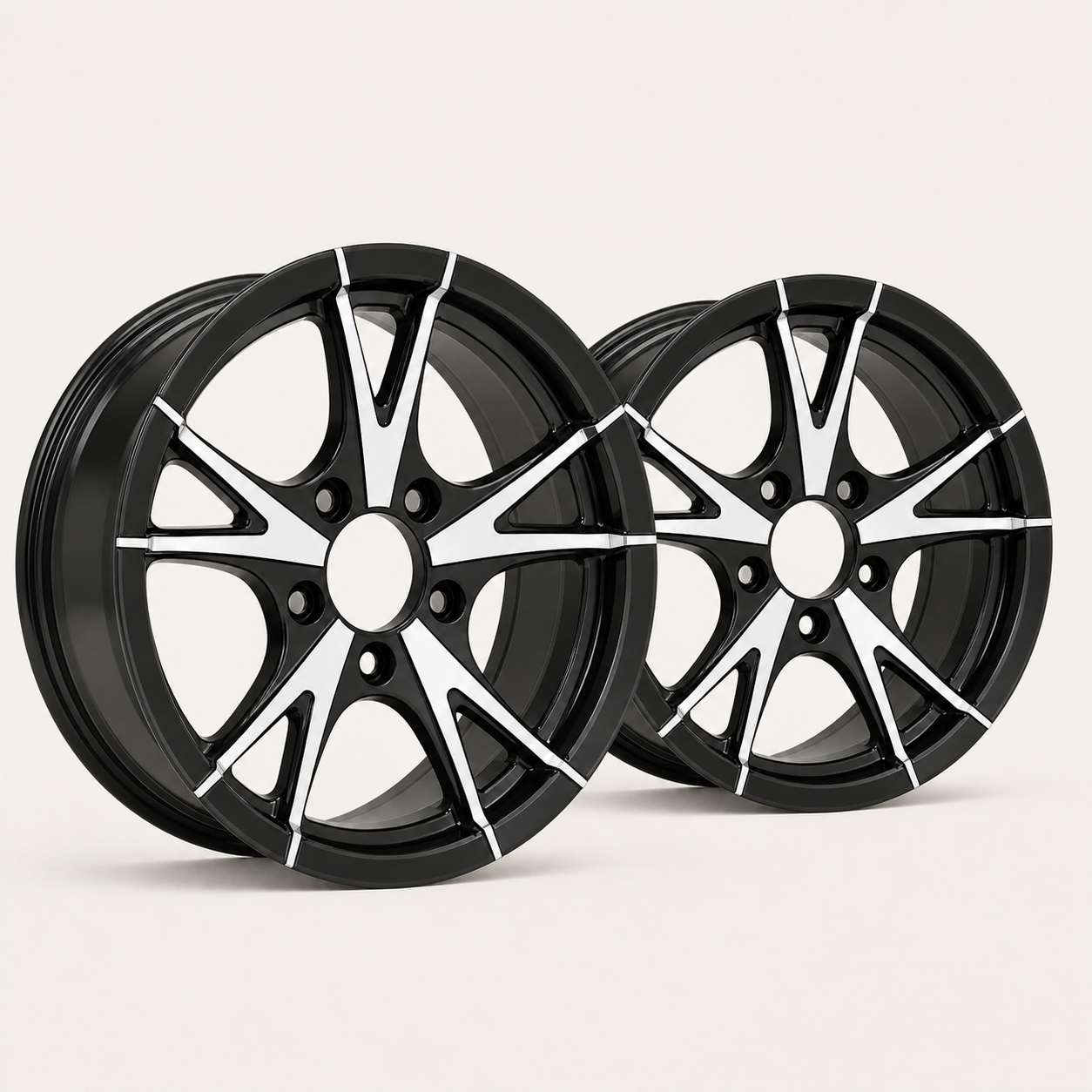

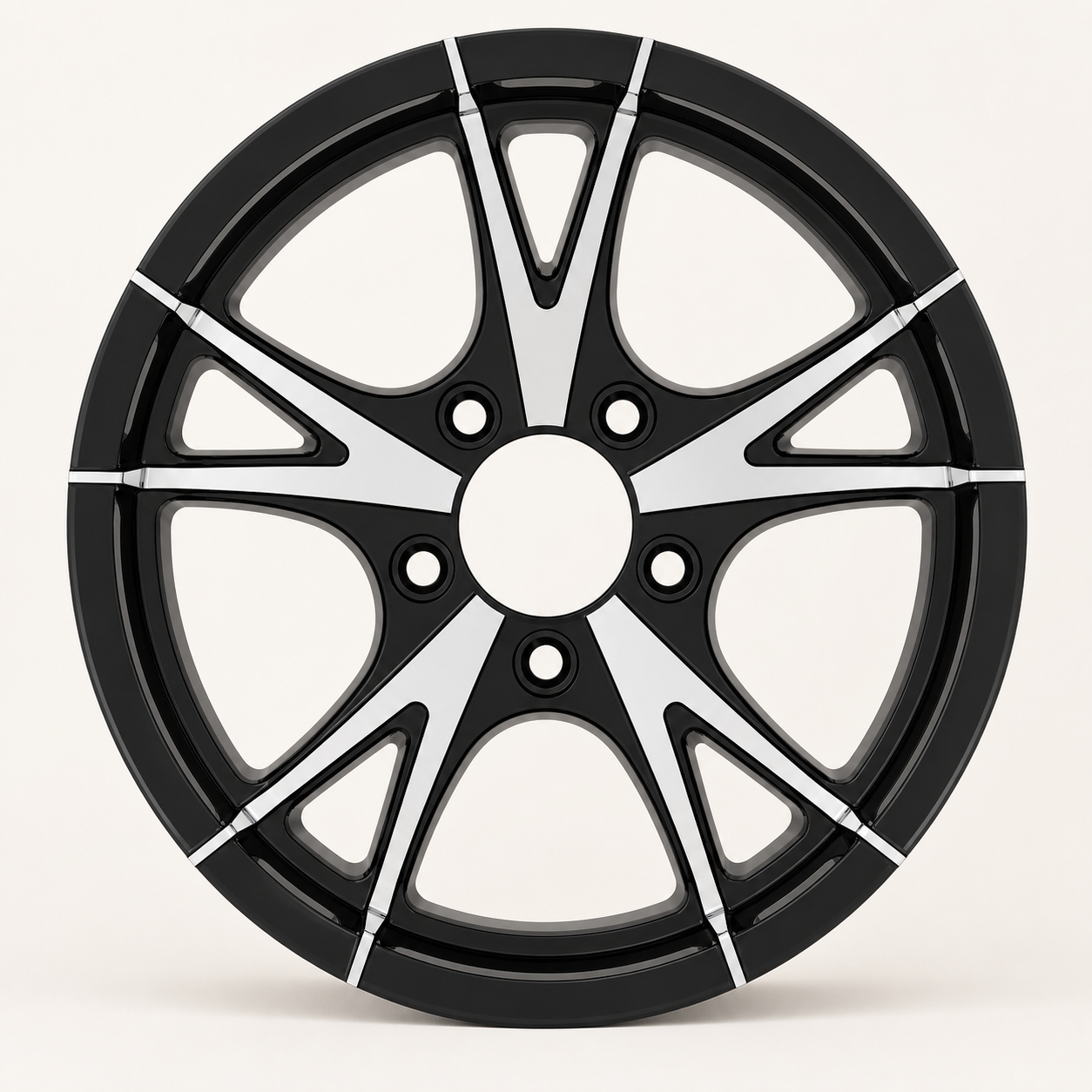

This set of two Rhino CW515 15x5 aluminum trailer wheels has a black finish with a machined face. Each wheel uses a 5-lug, 5x4.5 bolt pattern (5x114.3 mm), one of the most common patterns on light trailer and RV axles. The pair covers both hubs on a single-axle trailer and takes standard 15-inch trailer tires.
Specifications
| Rim Size (Diameter x Width) | 15 x 5 in |
|---|---|
| Bolt Pattern | 5x4.5 in (5x114.3 mm) |
| Lug Count | 5 |
| Material & Finish | Aluminum, black with machined face |
Key Features
- Matched pair: 2 identical CW515 wheels in one order
- Common fitment: 5x4.5 in (5x114.3 mm), the pattern used on many 5-lug trailer axles
- Aluminum construction: lighter than a comparable steel wheel and resistant to rust
- 15x5 sizing: 15-inch diameter and 5-inch rim width for 15-inch trailer tires
What's in the Box
- 2 x Rhino CW515 15x5 aluminum trailer wheels
Typical Use Cases
- Single-axle boat trailers replacing both wheels with rust-resistant aluminum
- Utility and landscape trailers with 5-lug hubs
- Light RV and camper trailers running 15-inch tires
FAQ
How do I confirm the 5x4.5 bolt pattern fits my trailer?
Count the lug studs first — these wheels need five per hub. On a 5-lug hub the measurement is not straight across: measure from the outer edge of one stud to the center of the second stud over, and the reading should be close to 4.5 inches. Our measuring guide shows the method in one minute.
What torque should I use on the lug nuts?
Use the torque value specified by your axle or trailer manufacturer for your stud size. Tighten in a criss-cross (star) sequence, and re-check torque after the first short loaded trip.
Not sure about your bolt pattern? Read our 1-minute measuring guide before ordering.
