15x5 Trailer Wheel 5 Lug (5x4.5) Aluminum Green Machined — Rhino CW515

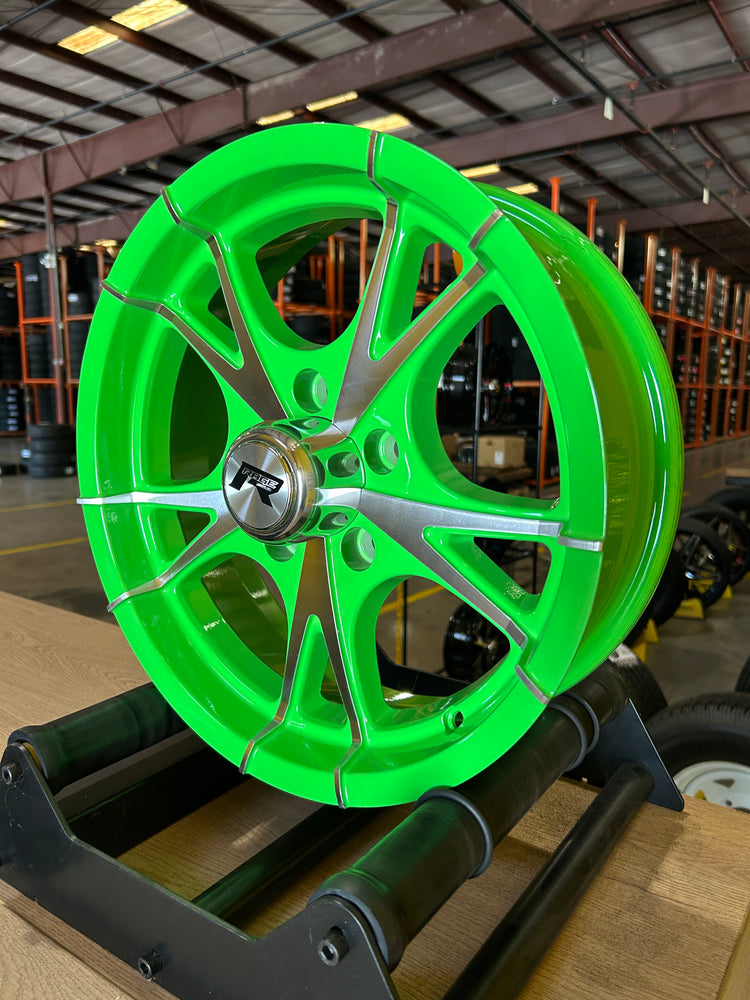

This listing is for one Rhino CW515 aluminum trailer wheel in a green machined finish. The wheel measures 15x5 — 15 in diameter, 5 in width — and uses the 5-lug 5x4.5 (5x114.3 mm) bolt pattern found on many utility, boat, and RV trailer axles. One-piece aluminum construction does not rust the way bare steel does.
Specifications
| Brand / Model | Rhino CW515 |
|---|---|
| Rim Size (D×W) | 15 x 5 in |
| Bolt Pattern | 5x4.5 in (5x114.3 mm) |
| Lug Count | 5 |
| Material & Finish | Aluminum alloy; green base with machined face |
| Sold As | Single wheel |
Key Features
- Trailer-standard fitment: 5-lug, 5x4.5 in (5x114.3 mm) bolt pattern
- Rust resistance: one-piece aluminum alloy construction
- Finish: green base with a machined aluminum face
- Sold individually: order exactly the wheel count you need
What's in the Box
- 1 × Rhino CW515 aluminum trailer wheel, 15x5, 5 lug (5x4.5), green machined
Typical Use Cases
- Boat trailers — aluminum construction paired with a fresh-water rinse after launches
- Utility and cargo trailers running 15 in, 5-lug hubs
- RV and camper trailers with the 5x4.5 bolt pattern
FAQ
How do I confirm 5x4.5 will fit my trailer?
5x4.5 means five lug holes on a 4.5 in (114.3 mm) bolt circle. On a 5-lug hub, measure from the center of one stud to the outer edge of a non-adjacent stud; a reading close to 4.5 in indicates a 5x4.5 pattern. The measuring guide linked below walks through it with photos.
What torque should I use on the lug nuts?
Use the torque specification from your axle or hub manufacturer for your stud size, tighten in a star pattern, and re-check torque after the first 50–100 miles of towing. Re-checking after the first trip is standard practice on any newly mounted trailer wheel.
Do trailer wheels need to be balanced?
Generally no. Trailer axles do not steer, so small imbalances are far less noticeable than on a tow vehicle, and most trailer wheels are mounted without balancing. If you tow long distances at highway speed and want smoother wear, balancing beads inside the tire are a common option.
Not sure about your bolt pattern? See our 1-minute bolt pattern measuring guide before ordering, or call (407) 821-7008.
