15x5 Trailer Wheel 5 Lug (5x4.5) Aluminum Black Machined — Rhino CW515

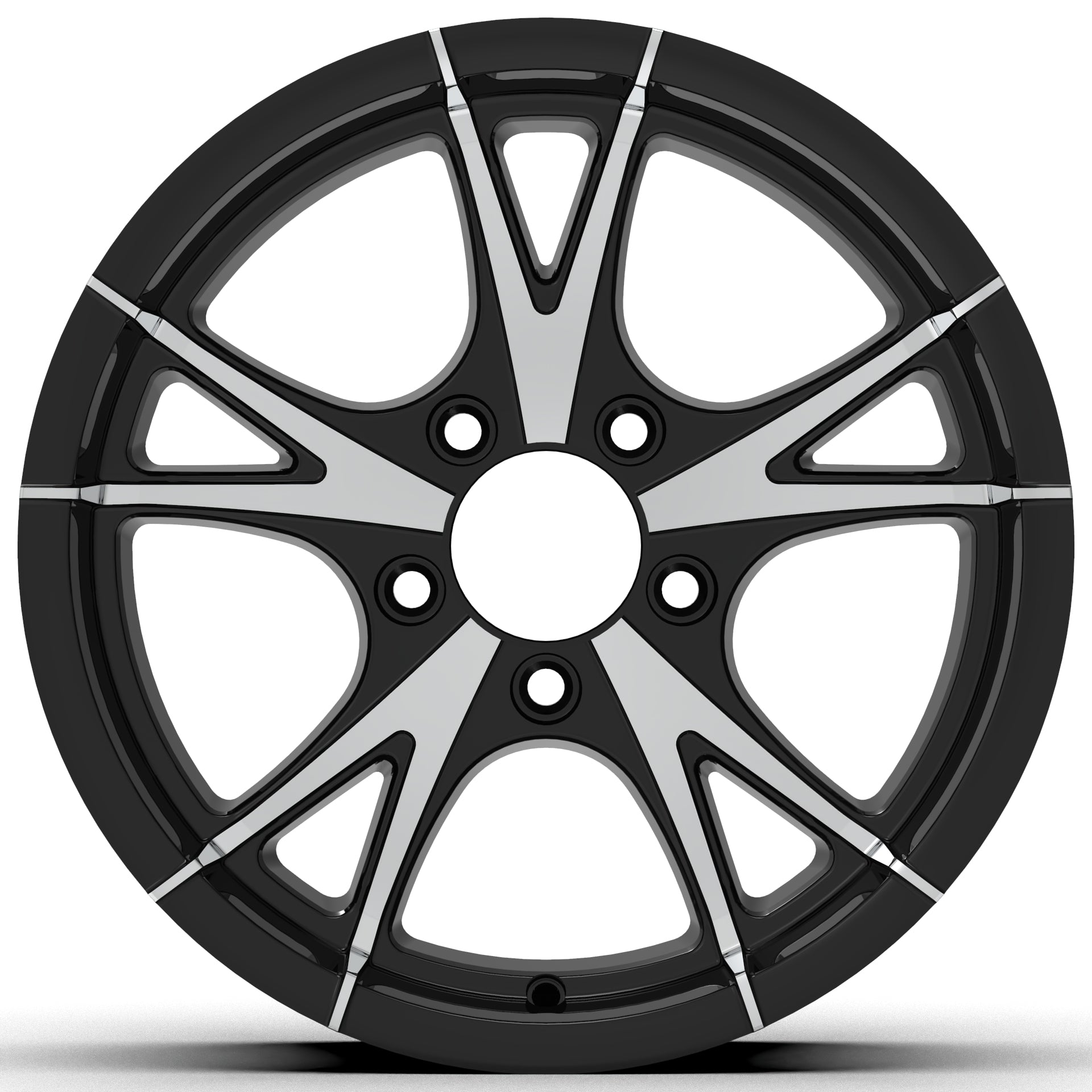

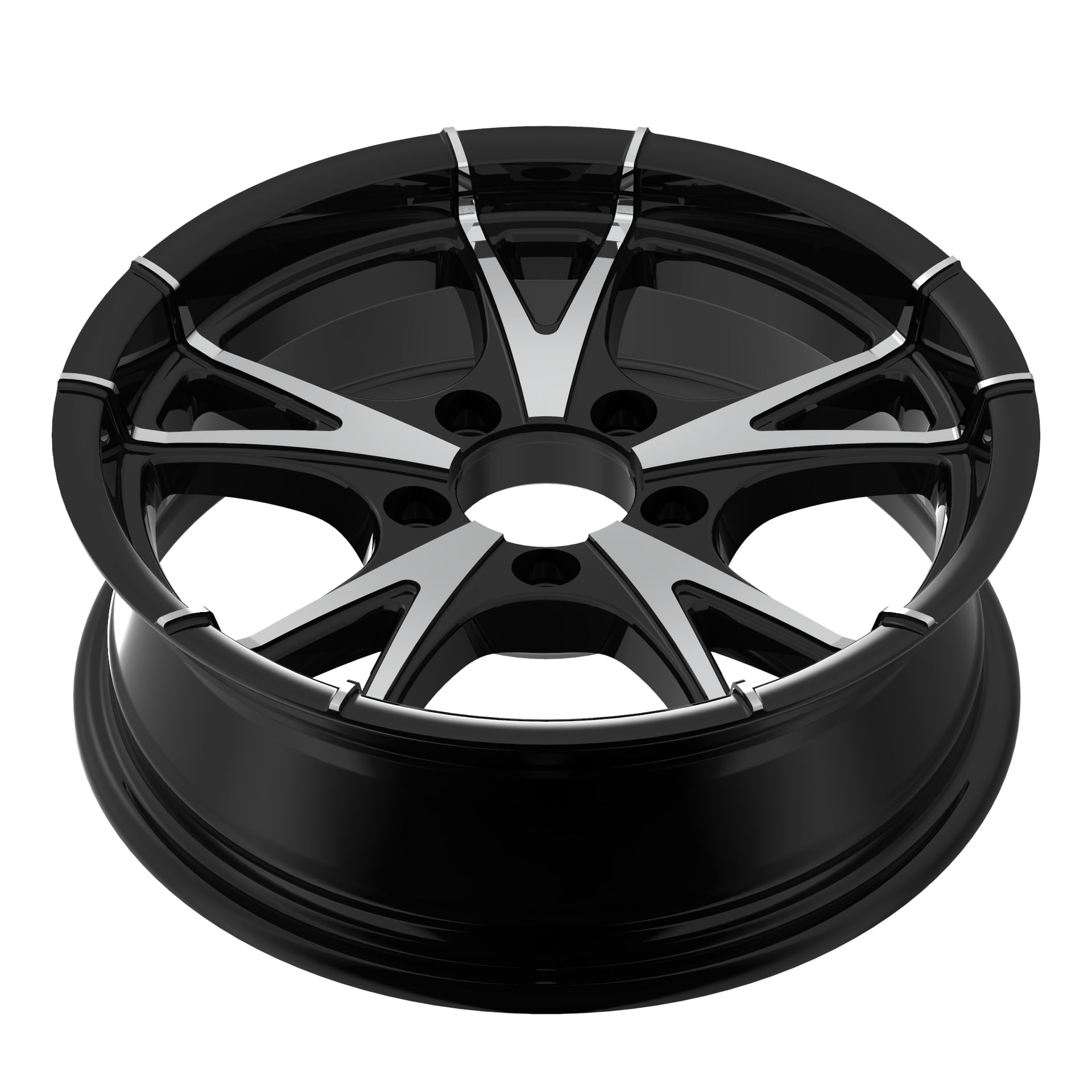

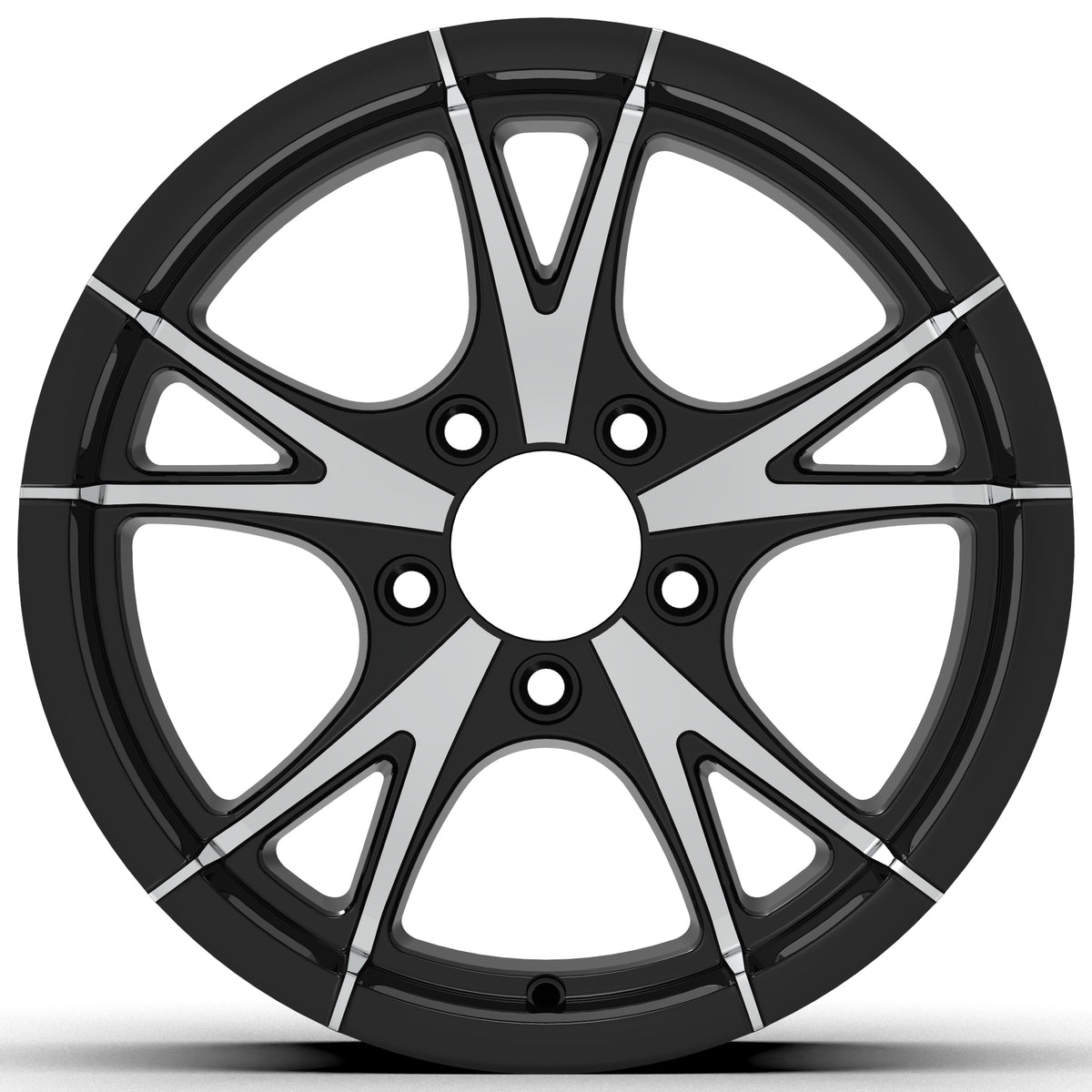

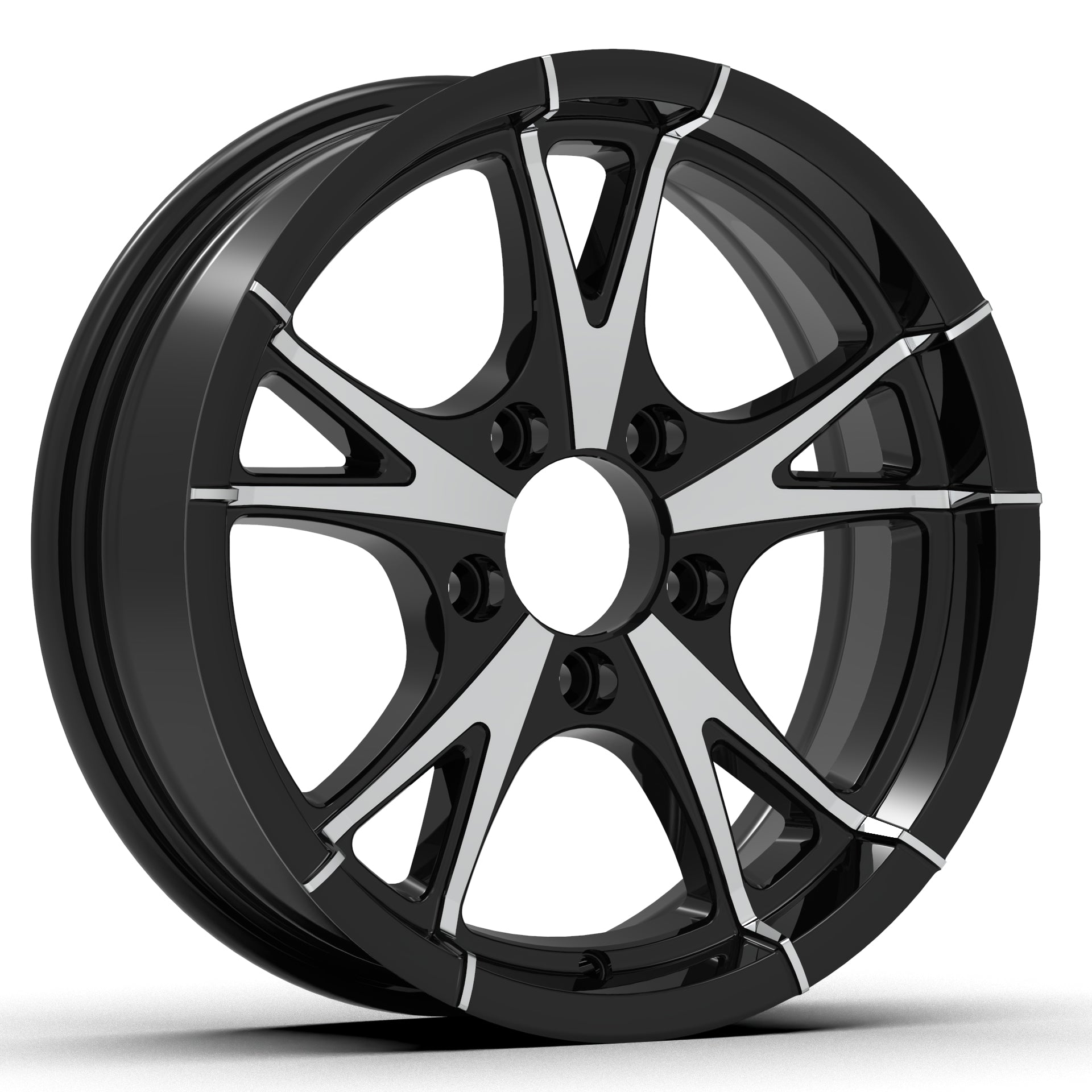

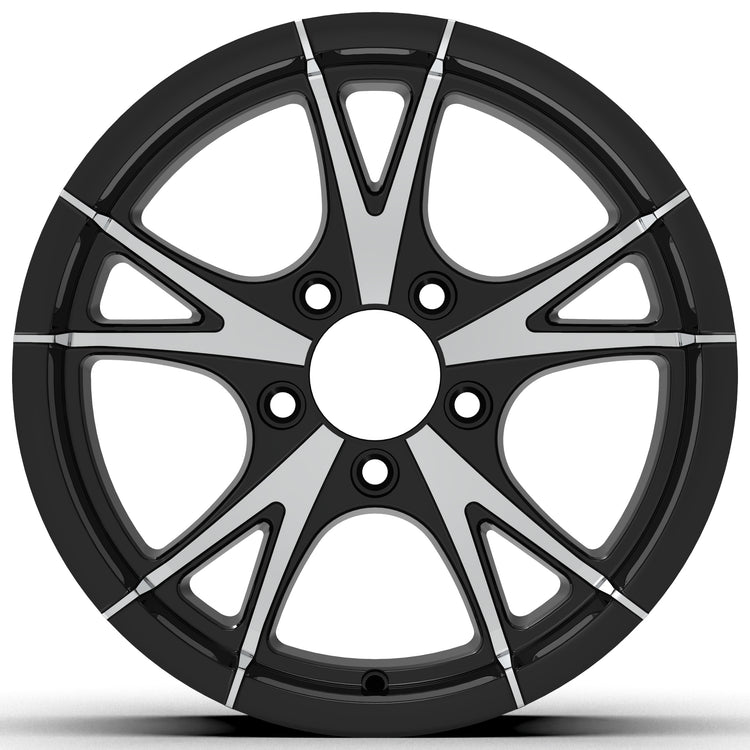

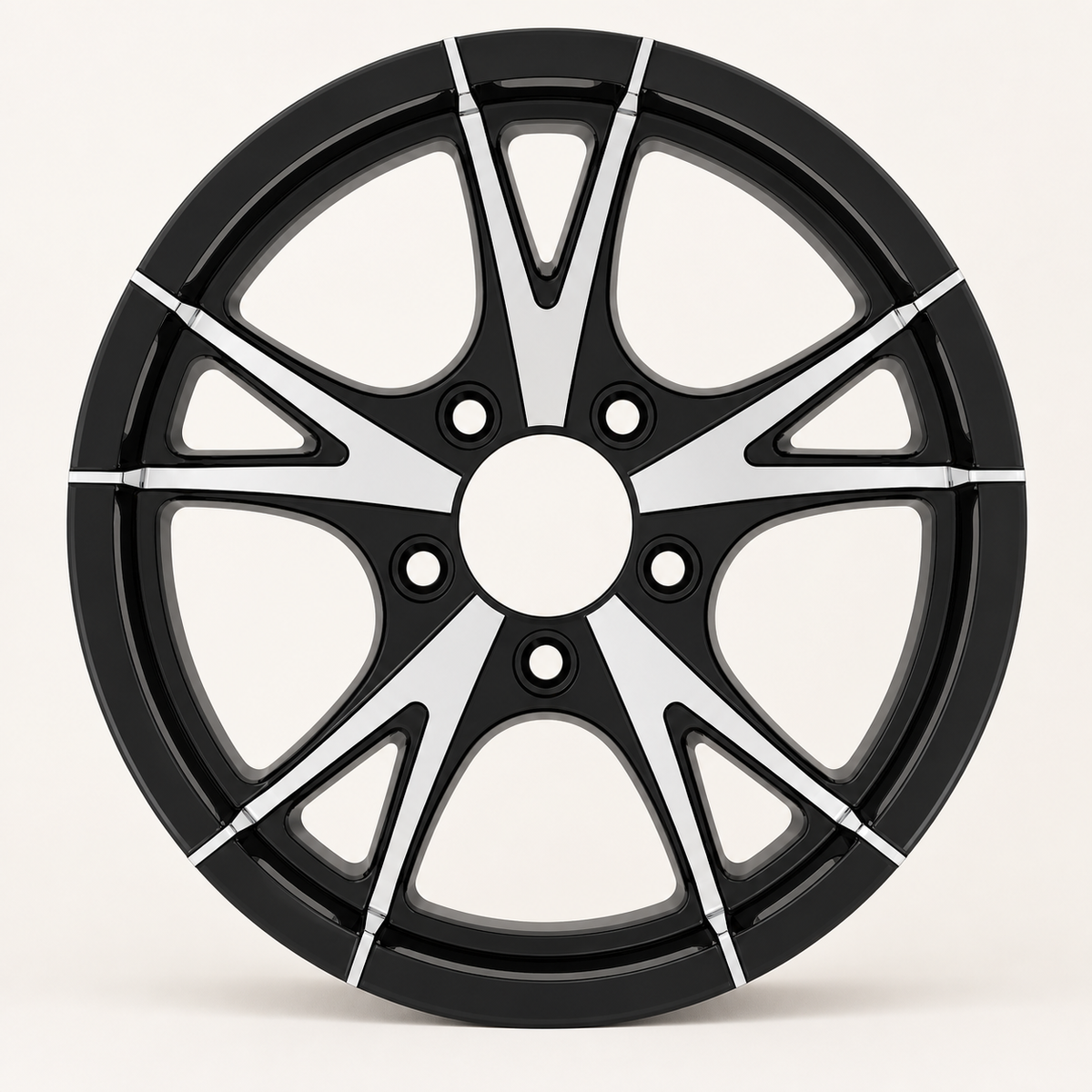

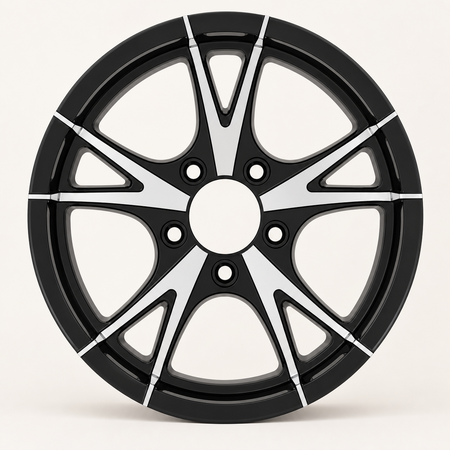

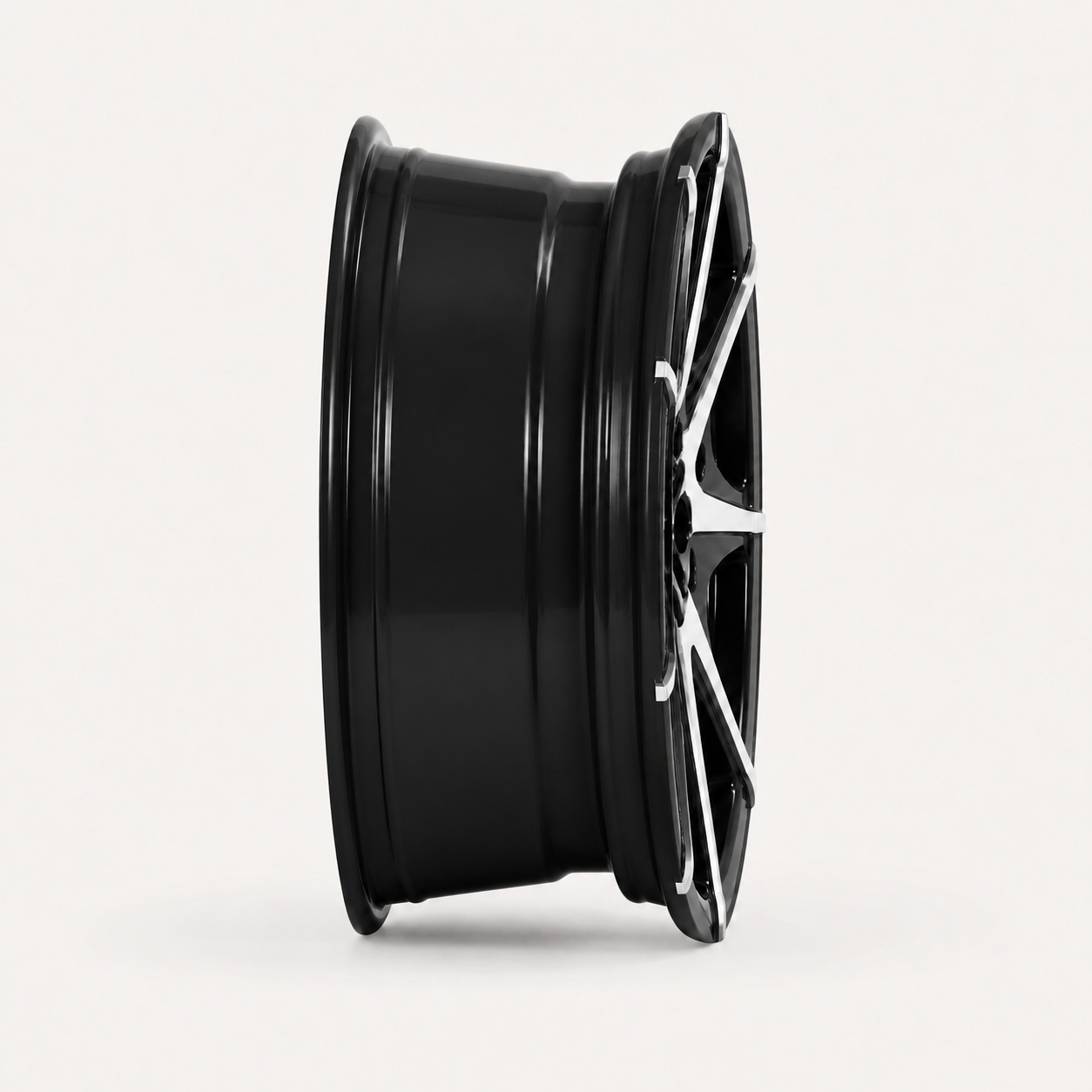

The Rhino CW515 is a 15x5 aluminum trailer wheel with a black finish and machined face. It uses a 5-lug, 5x4.5 bolt pattern (5x114.3 mm), one of the most common patterns on light trailer and RV axles, and takes standard 15-inch trailer tires. This listing is for one wheel.
Specifications
| Rim Size (Diameter x Width) | 15 x 5 in |
|---|---|
| Bolt Pattern | 5x4.5 in (5x114.3 mm) |
| Lug Count | 5 |
| Material & Finish | Aluminum, black with machined face |
Key Features
- Common fitment: 5x4.5 in (5x114.3 mm), the pattern used on many 5-lug trailer axles
- Aluminum construction: lighter than a comparable steel wheel and resistant to rust

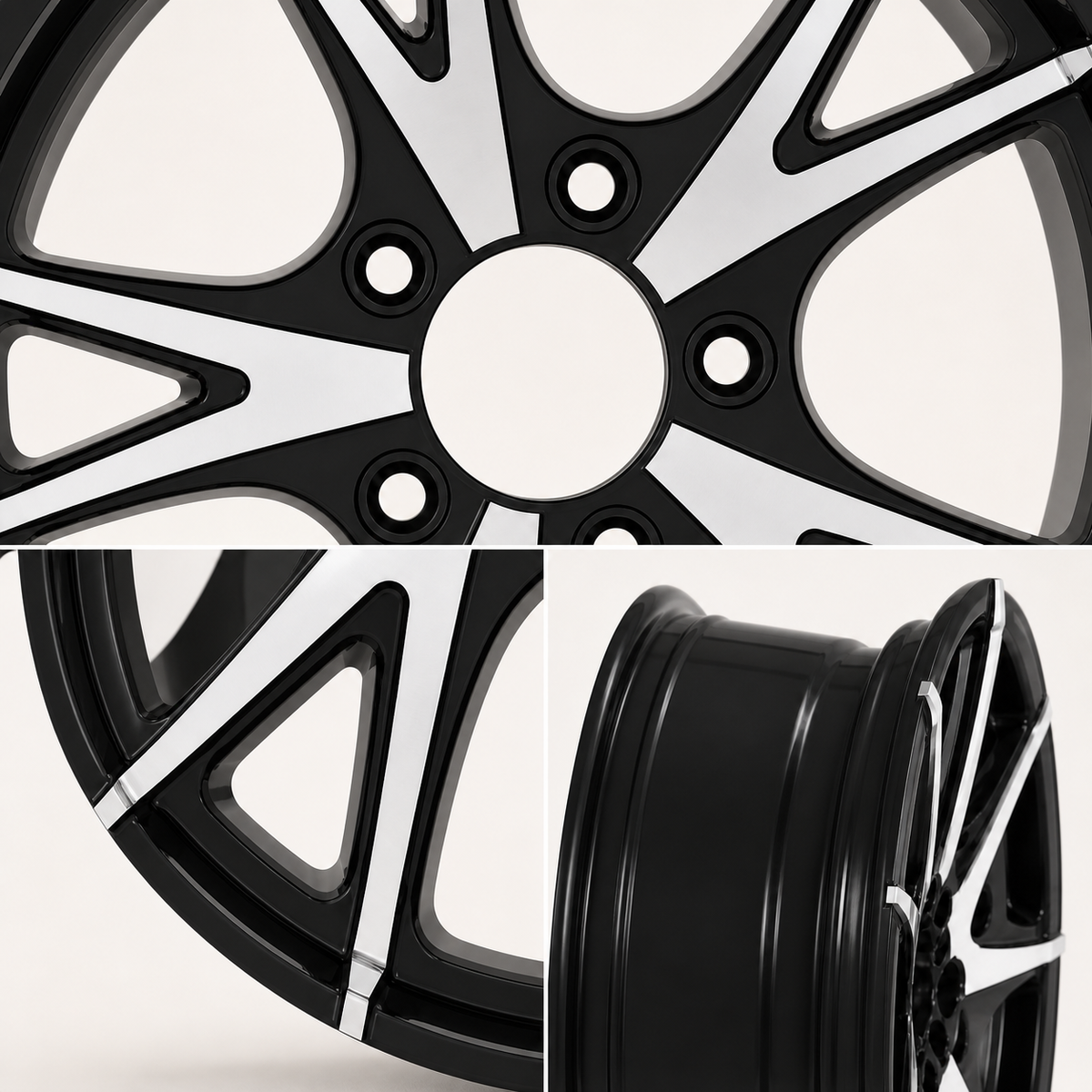

- Machined face: black-finished CW515 styling with bright machined accents
- 15x5 sizing: 15-inch diameter and 5-inch rim width for 15-inch trailer tires
- Flexible quantities: this wheel is also available in 2-pack and 4-pack listings in our store
What's in the Box

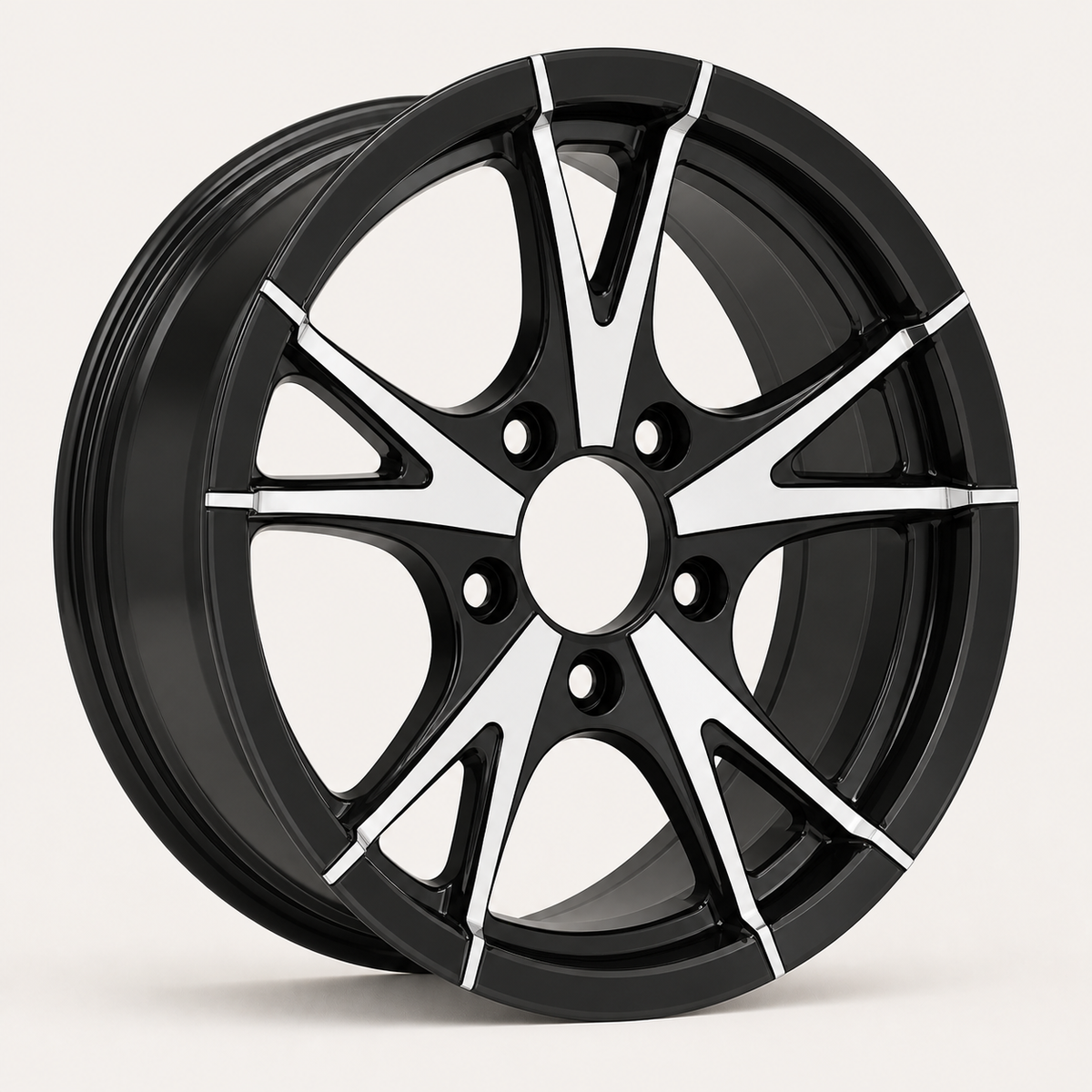

- 1 x Rhino CW515 15x5 aluminum trailer wheel
Typical Use Cases
- Boat trailers where an aluminum wheel resists salt-water rust
- Utility and landscape trailers with 5-lug hubs
- Light RV and camper trailers running 15-inch tires
FAQ
How do I confirm the 5x4.5 bolt pattern fits my trailer?
Count the lug studs first — this wheel needs five. On a 5-lug hub the measurement is not straight across: measure from the outer edge of one stud to the center of the second stud over, and the reading should be close to 4.5 inches. Our measuring guide shows the method in one minute.
Do trailer wheels need to be balanced?
Usually not. A trailer axle does not steer, so small imbalances are far less noticeable than on a tow vehicle. Balancing beads inside the tire are a common option for long highway tows.
Do aluminum trailer wheels need special care around salt?
Aluminum does not rust like steel, but salt water can still dull or pit the finish. Rinse with fresh water after ramp dips and dry before storage.
Not sure about your bolt pattern? Read our 1-minute measuring guide before ordering.
